RapidAir FastPipe Flange Connection

Product Information

A flange connection fitting for FastPipe rigid aluminum compressed air piping, converting FastPipe pipe to a standard ANSI 150# bolted flange connection.

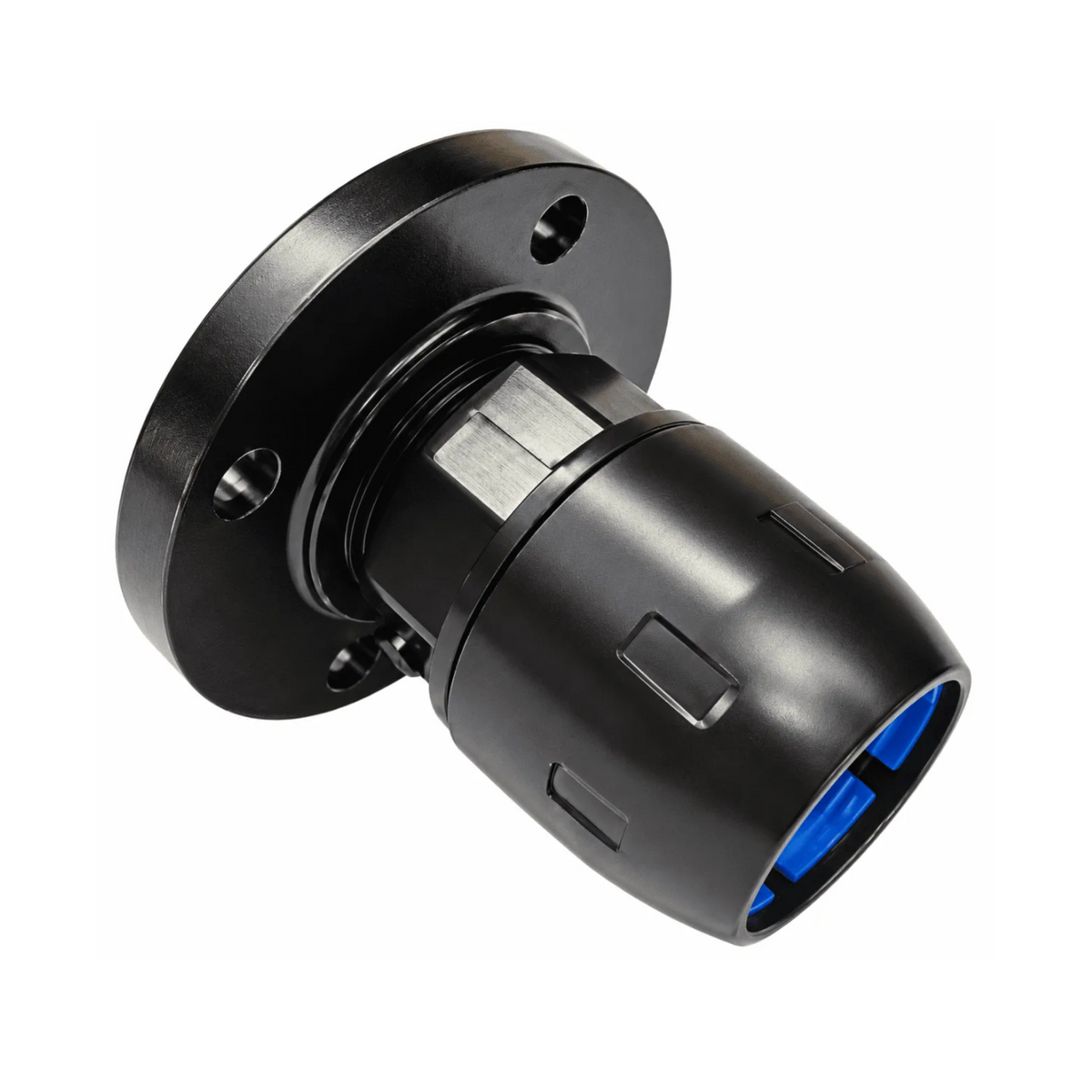

3" Size

• 3" FastPipe compression connection on one end, 4-hole ANSI 150# flange (7-1/2" OD) on the other — connects directly to rigid pipe, no separate union required

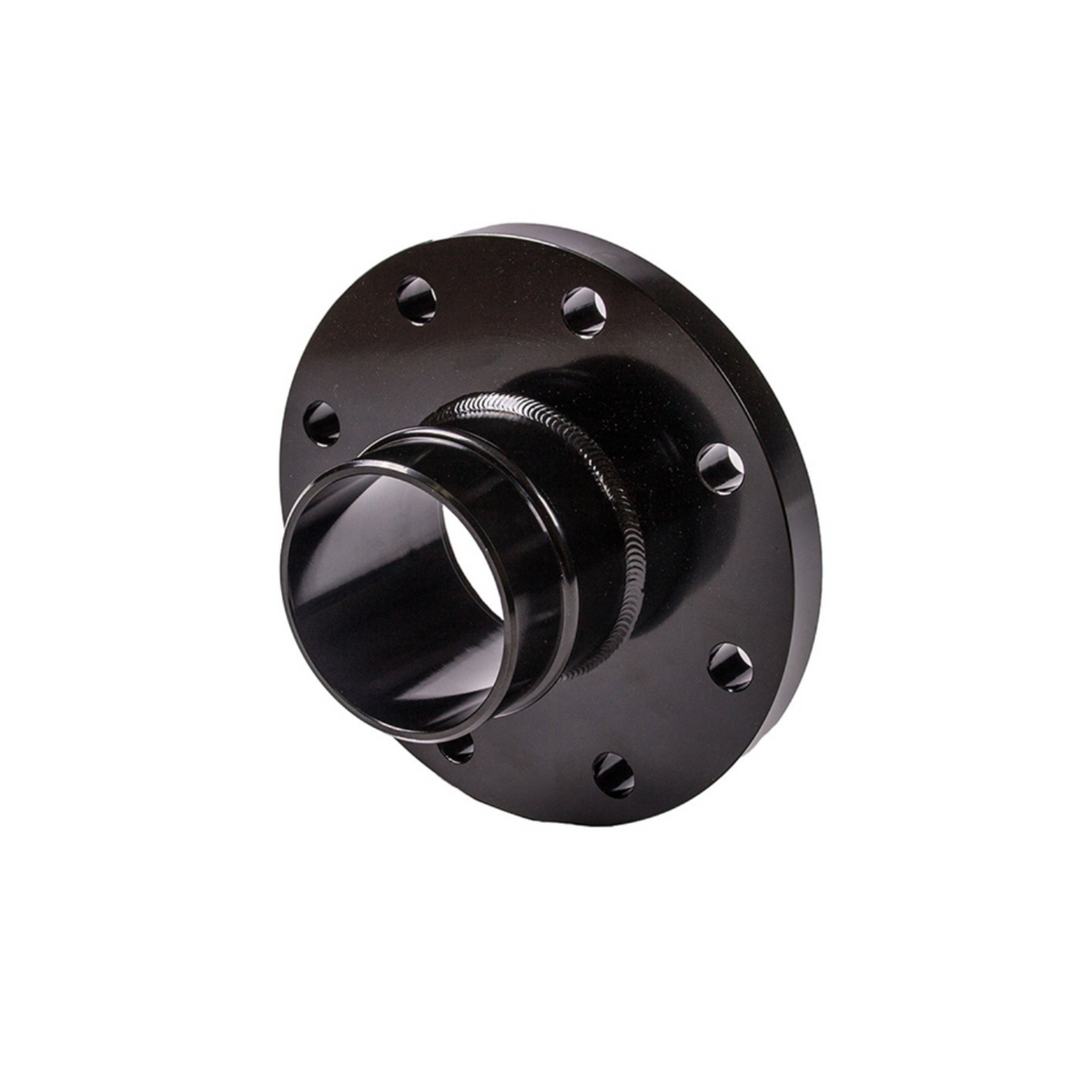

4" to 8" Industrial Sizes

• Die-cast aluminum alloy body with a nitrile seal, powder coated
• Lug-style fitting; installation requires a lugging tool
• 4" and 6" sizes are sold as the flange fitting only — connecting FastPipe Straight Unions (sold separately) are required to join them to rigid pipe. The 8" size is presumed to need the same, though its price sheet description doesn’t state it as explicitly.
• The 8" size includes its own flange gasket and bolt set; the 3", 4", and 6" sizes require a matching FastPipe Flange Gasket and Bolt Set, purchased separately
