Product Information

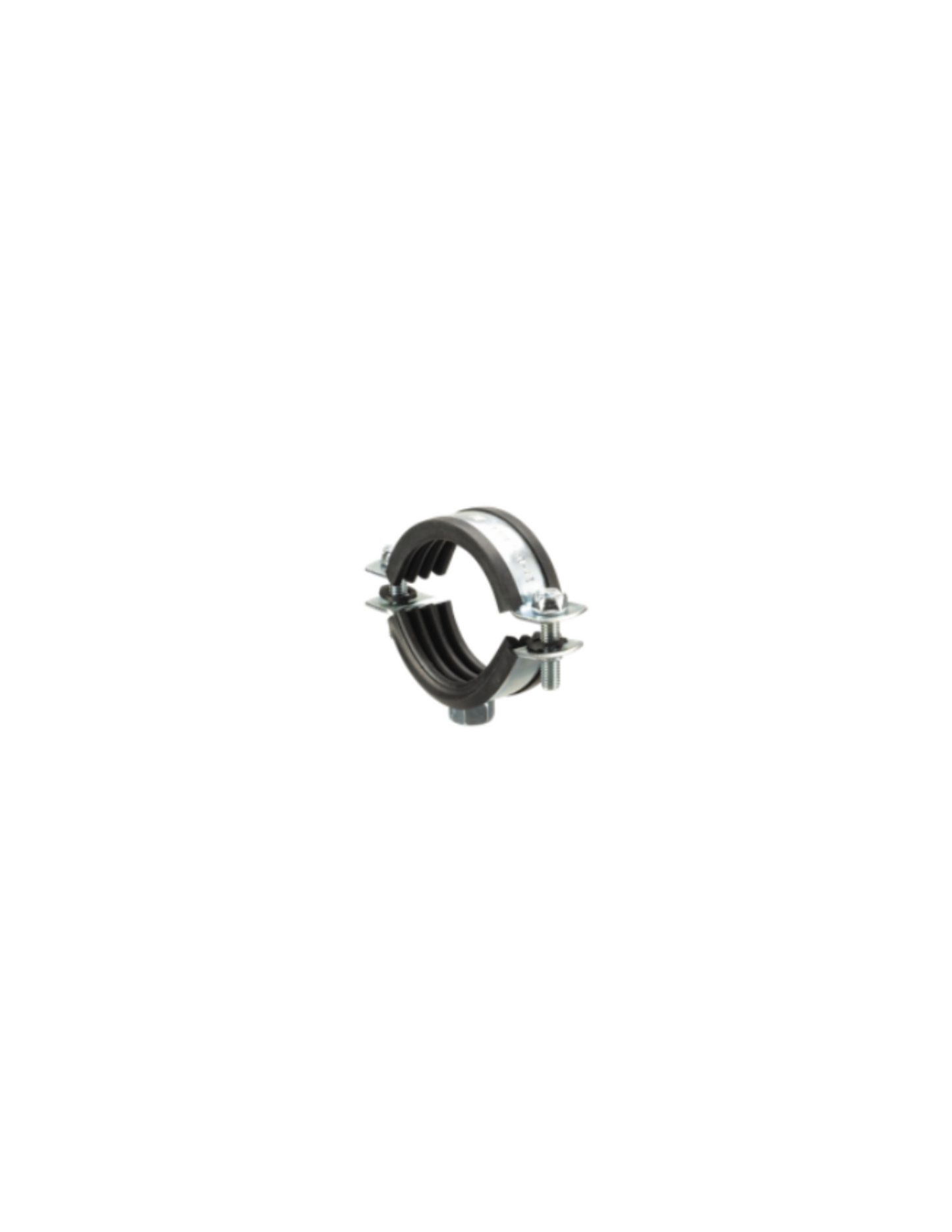

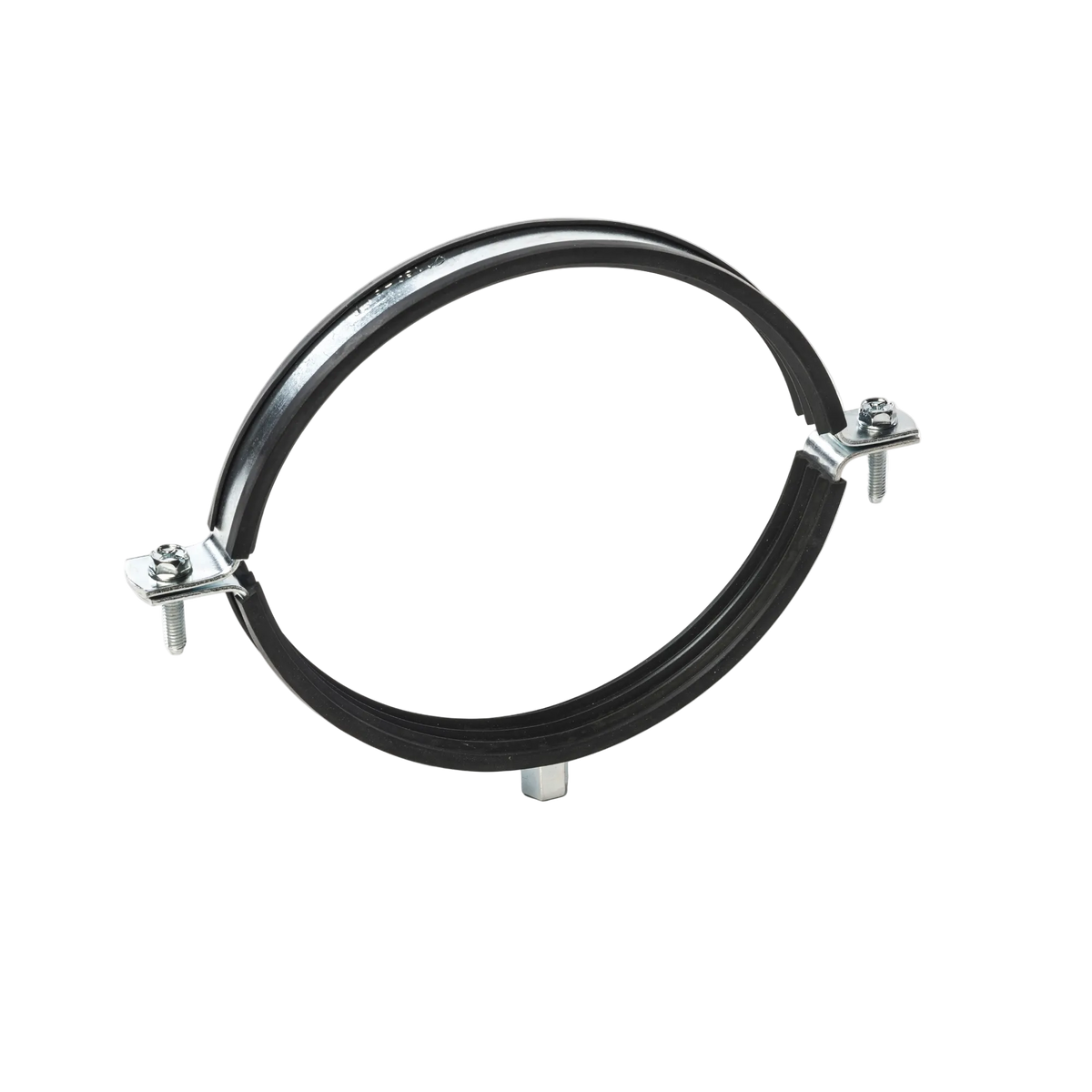

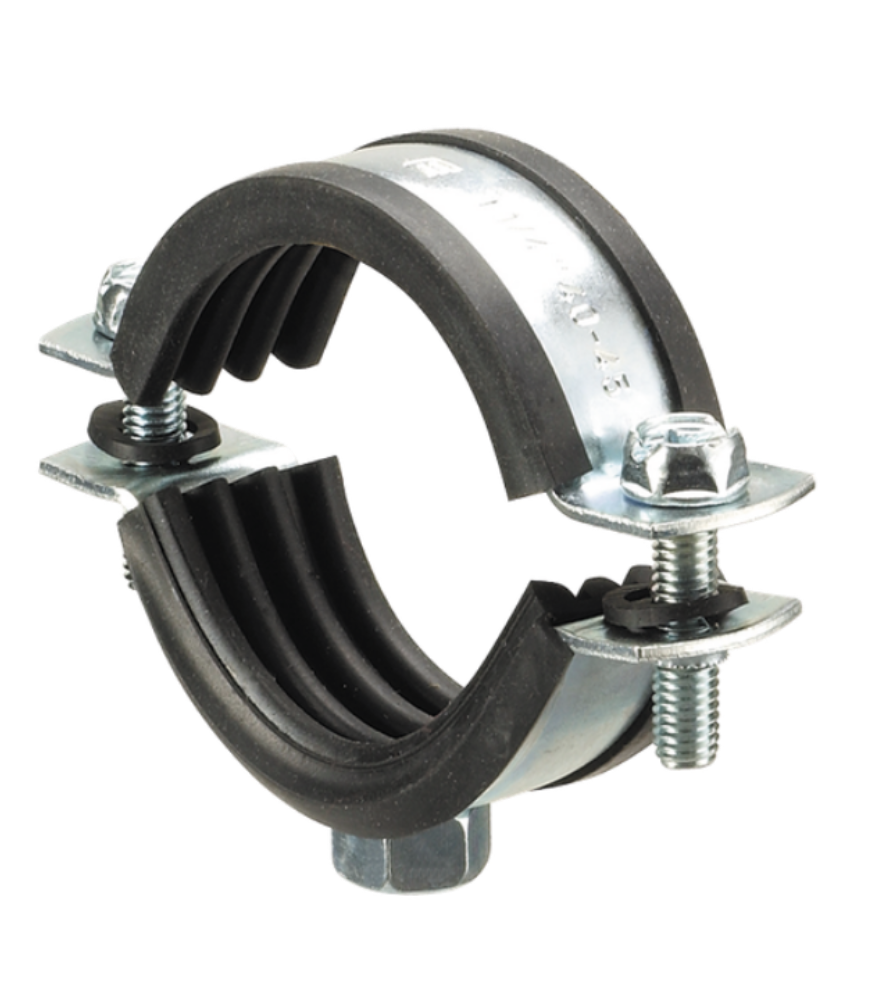

This Prevost Pipe Clamp (5 Per Box) - PPS1 CI & UNC is a reliable and efficient product that comes with a box of five clamps for easy and secure installation. The CI & UNC feature ensures compatibility with various pipe sizes, making it a versatile and cost-effective solution for your pipe clamping needs.
Ordered in quantities of 5 units per box
All clamps are UNC Female Thread size of 3/8"
Dimensions - Fractional Inch
| Part # |
For pipe OD (in) |
UNC female thread |
A inch |
B inch |
| PPS1 CI16UNC |
1/2″ |
3/8″ |
0.945 |
1.850 |
| PPS1 CI20UNC |
3/4″ |
3/8″ |
0.945 |
1.929 |
| PPS1 CI25UNC |
1″ |
3/8″ |
1.142 |
2.087 |
| PPS1 CI32UNC |
1 1/4″ |
3/8″ |
1.496 |
2.244 |
| PPS1 CI40UNC |
1 1/2″ |
3/8″ |
1.929 |
3.917 |
| PPS1 CI50UNC |
2″ |
3/8″ |
2.323 |
4.114 |
| PPS1 CI63UNC |
2 1/2″ |
3/8″ |
2.953 |
5.315 |
| PPS1 CI80UNC |
3″ |
3/8″ |
3.543 |
5.709 |
| PPS1 CI100UNC |
4″ |
3/8″ |
4.331 |
6.102 |
Dimensions - Fractional Inch
| Part # |
For pipe OD (in) |
Thread |
A inch |
B inch |
| PPS1 CI16 |
1/2″ |
M8 |
1.929 |
3.917 |
| PPS1 CI20 |
3/4″ |
M8 |
0.945 |
1.929 |
| PPS1 CI25 |
1″ |
M8 |
1.142 |
2.087 |
| PPS1 CI32 |
1 1/4″ |
M8 |
1.496 |
2.244 |
| PPS1 CI40 |
1 1/2″ |
M8 |
1.929 |
3.917 |
| PPS1 CI50 |
2″ |
M8 |
2.323 |
4.114 |
| PPS1 CI63 |
2 1/2″ |
M8 |
2.953 |
5.315 |
| PPS1 CI80 |
3″ |
M8 |
3.543 |
5.709 |
| PPS1 CI100 |
4″ |
M8 |
4.331 |
6.102 |
