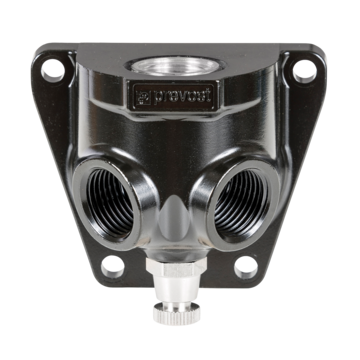

Prevost Outlet Manifold-Inlet NPT female thread = 3/4"FNPT - Outlet x 1/2" FNPT
Prevost Outlet Manifold-Inlet NPT female thread = 3/4"FNPT - Outlet x 1/2" FNPT
SKU:MF 204S4
Regular price
$31.95 USD
Regular price
Sale price
$31.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
View full details




Product Information
The Prevost Outlet Manifold features a 3/4" female NPT thread for the inlet and a 1/2" female NPT thread for the outlet. Designed for durability and precision, this manifold ensures a secure and efficient connection. Perfect for various industrial applications.
Inlet NPT female thread - 3/4" FNPT
Number of outlets - 4,6,8,10
Outlet NPT female thread - 1/2" FNPT
Operating pressure - 29 to 174 psi
Temperature - 60°F to +200°F
Construction - Aluminium
Dimensions
A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
---|---|---|---|---|---|
2.008 | 1.969 | 1.496 | 2.48 | 0.256 | MF 203S1 |
2.795 | 2.244 | 1.496 | 2.913 | 0.256 | MF 203S2 |
2.795 | 2.244 | 1.496 | 2.913 | 0.256 | MF 204S2 |
3.071 | 3.937 | 2.48 | 3.15 | 2.48 | MF 204S4 |
2.913 | 5.709 | 2.48 | 4.921 | 2.48 | MF 204S6 |
3.071 | 7.48 | 2.48 | 6.693 | 2.48 | MF 204S8 |
3.071 | 9.252 | 2.48 | 8.465 | 2.48 | MF 204S10 |
