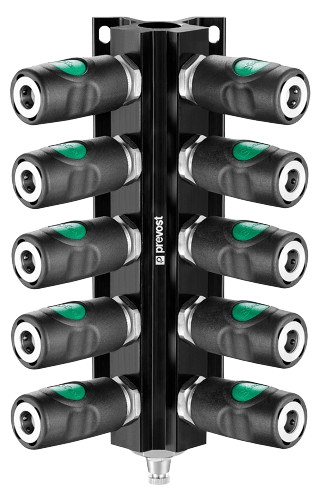

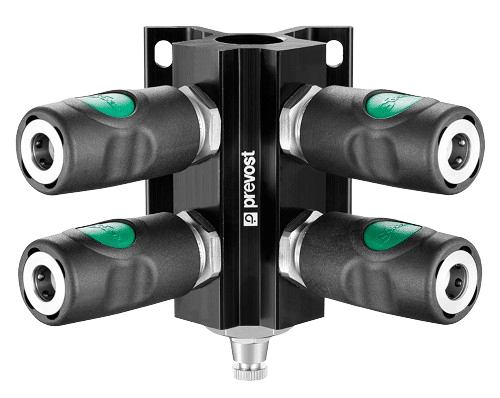

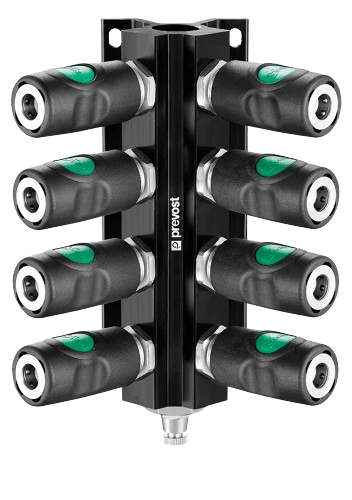

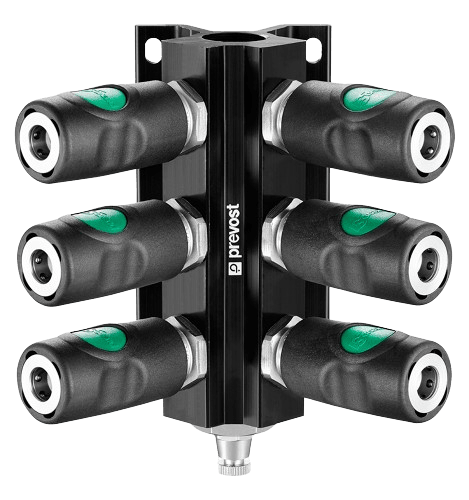

Prevost Female Thread Wall Manifold - Couplers & Drain (3/8" High Flow Profile)
Prevost Female Thread Wall Manifold - Couplers & Drain (3/8" High Flow Profile)
SKU:MF 204S4ES
Regular price
$154.10 USD
Regular price
Sale price
$154.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Information
The Prevost Female Thread Wall Manifold is a high flow profile coupler and drain system. Featuring female threads, this manifold is designed for maximum efficiency and easy installation. Perfect for industrial use, this product is essential for any expert seeking superior performance and functionality.
Inlet NPT female thread - 3/4" FNPT
Outlet - 4,6,8,10 x ESI 07
Operating pressure - 0 to 232 psi
Temperature - 60°F to +200°F
Construction - Aluminium
Dimensions
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Reference |
|---|---|---|---|---|---|
| 3.071 | 5.315 | 2.48 | 3.15 | 0.256 | MF 204S4ES |
| 3.071 | 7.087 | 2.48 | 4.921 | 0.256 | MF 204S6ES |
| 3.071 | 8.858 | 2.48 | 6.693 | 0.256 | MF 204S8ES |
| 3.071 | 10.63 | 2.48 | 8.465 | 0.256 | MF 204S10ES |
