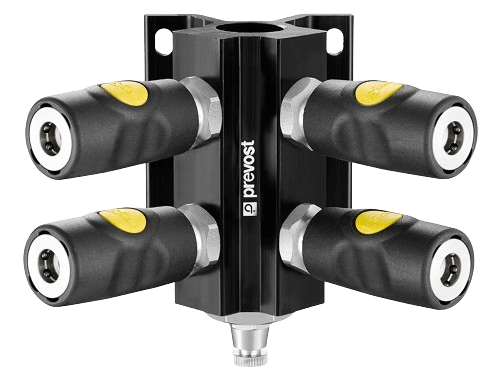

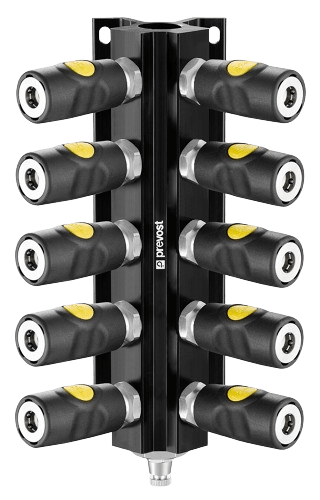

Prevost Female Thread Wall Manifold - Couplers & Drain (1/4" ARO 210 Profile)

Expertly designed for efficiency and ease of use, the Prevost Female Thread Wall Manifold is a top choice for any workshop. Featuring 1/4" ARO 210 Profile couplers and drain, this manifold streamlines your air system for improved performance. Built with precision and quality, it's a must-have for any professional.



Inlet NPT female thread - 3/4" FNPT

Outlet - 4,6,8,10 x ASI 06

Operating pressure - 0 to 232 psi

Temperature - 60°F to +200°F

Construction - Aluminium



Dimensions

A (inch)	B (inch)	C (inch)	D (inch)	E (inch)	Reference
3.071	5.315	2.48	3.15	0.256	MF 204S4AS
3.071	7.087	2.48	4.921	0.256	MF 204S6AS
3.071	8.858	2.48	6.693	0.256	MF 204S8AS
3.071	10.63	2.48	8.465	0.256	MF 204S10AS
