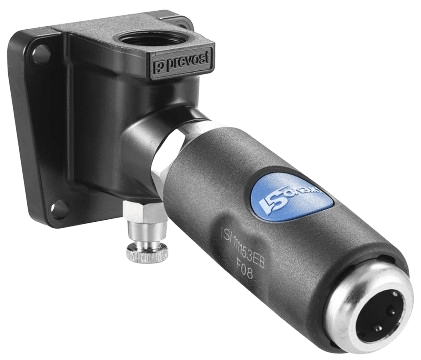

Prevost Female Thread One Port Wall Bracket - 1 Coupler & Drain - ISO 6150 B Profile - ID passage 11 mm
Prevost Female Thread One Port Wall Bracket - 1 Coupler & Drain - ISO 6150 B Profile - ID passage 11 mm
SKU:ISI 111203EWK
Regular price
$92.80 USD
Regular price
Sale price
$92.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
View full details

Product Information
This Prevost Female Thread One Port Wall Bracket is designed for easy installation and use. The bracket features 1 coupler and a drain, along with an ISO 6150 B profile for secure, leak-free connections. With an ID passage of 11 mm, this bracket is perfect for a variety of applications.
Inlet BSPP female thread: G 1/2
Inlet NPT female thread: 1/2" FNPT
Outlet 1 coupling: ISI 11EB
Technology: "One push" safety system (avoids hose whip)
Operating pressure: 2 to 12 bar
Flow rate at 6 bar: 3686 l/min (ΔP = 0,6 bar)
ID Passage: 11 mm
Temperature: -15°C to +70°C
Construction: Polyamide composite body
Highlight: Anti-static Excellent efficiency Non scratch
Dimensions
A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Part # |
---|---|---|---|---|---|
2.008 | 1.969 | 1.496 | 2.48 | 0.256 | ISI 111203EWK |
