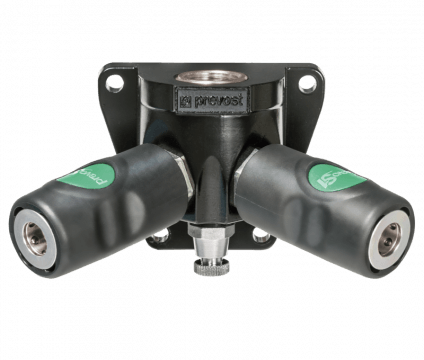

Prevost Female Thread Double Wall Manifold - 2 Couplers & Drain - 3/8" High Flow Profile
Prevost Female Thread Double Wall Manifold - 2 Couplers & Drain - 3/8" High Flow Profile
SKU:ESI 078203WK
Regular price
$104.40 USD
Regular price
Sale price
$104.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
View full details

Product Information
Expertly designed for optimal performance, the Prevost Female Thread Double Wall Manifold offers effortless coupling and drainage with its 2 couplers and drain. Its 3/8" High Flow Profile ensures maximum efficiency. Upgrade your system with the added convenience of both 1/2" and 3/4" inlet FNPT options.
Inlet NPT female thread: 1/2" FNPT
Outlet 2 couplings: ESI 07
Technology: "One push" safety system (avoids hose whip)
Operating pressure: 29 to 174 psi
Flow rate at 100 psi: 73 cfm (ΔP = 10 psi)
ID Passage: 3/8" body size
Temperature: +5°F to +158°F
Construction: Composite body
Highlight: Anti-static Non scratch
Description
Reference | Inlet NPT female thread | Outlet 2 couplings |
---|---|---|
ESI 078203WK | 1/2" FNPT | ESI 07 |
ESI 078204WK | 3/4" FNPT | ESI 07 |
Dimensions
Reference | A inch | B inch | C inch | D inch | E inch | |
---|---|---|---|---|---|---|
ESI 078203WK | 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | ESI 078203WK |
ESI 078204WK | 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | ESI 078204WK |
