Prevost Female Thread Double Wall Manifold - 2 Couplers & Drain - 3/8" Automotive Profile
Prevost Female Thread Double Wall Manifold - 2 Couplers & Drain - 3/8" Automotive Profile
SKU:USI 088203WK
Regular price
$154.80 USD
Regular price
Sale price
$154.80 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Information

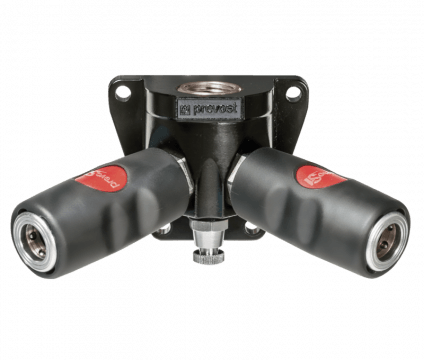

This Prevost Female Thread Double Wall Manifold features 2 couplers and a drain, all compatible with 3/8" Automotive Profile. Improve your workflow and enhance the safety of your pneumatic system with this high-quality and versatile manifold.
Inlet NPT female thread: 1/2" & 3/4"FNPT
Outlet 2 couplings: USI 08
Technology: "One push" safety system (avoids hose whip)
Operating pressure: 29 to 174 psi
Flow rate at 100 psi: 81 cfm (ΔP = 10 psi)
ID Passage: 3/8" body size
Temperature: +5°F to +158°F
Construction: Composite body
Highlight: Anti-static Non scratch
Dimensions
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Part # |
|---|---|---|---|---|---|
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | USI 088203WK |
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | USI 088204WK |
