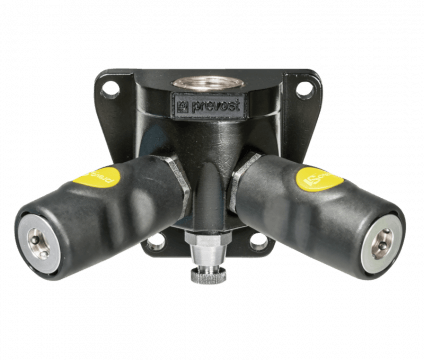

Prevost Female Thread Double Wall Manifold - 2 Couplers & Drain - 1/4" ARO 210 Profile
Prevost Female Thread Double Wall Manifold - 2 Couplers & Drain - 1/4" ARO 210 Profile
SKU:ASI 068203WK
Regular price
$112.90 USD
Regular price
Sale price
$112.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Information
Expertly designed Prevost Female Thread Double Wall Manifold is ideal for connecting compressed air lines without any leakage. The manifold comes with 2 couplers and a drain, providing maximum convenience. It is available in both 1/2" and 3/4" FNPT female threads, ensuring compatibility with various systems.
Inlet NPT female thread: 1/2" & 3/4" FNPT
Outlet 2 couplings: ASI 06
Technology: "One push" safety system (avoids hose whip)
Operating pressure: 29 to 174 psi
Flow rate at 100 psi: 32 cfm (ΔP = 10 psi)
ID Passage: 1/4" body size
Temperature: +5°F to +158°F
Construction: Composite body
Highlight: Anti-static Non scratch
Description
| Reference | Inlet NPT female thread | Outlet 2 couplings |
|---|---|---|
| ASI 068203WK | 1/2" FNPT | ASI 06 |
| ASI 068204WK | 3/4" FNPT | ASI 06 |
Dimensions
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | Part # |
|---|---|---|---|---|---|
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | ASI 068203WK |
| 2.795 | 2.244 | 1.496 | 2.756 | 0.256 | ASI 068204WK |
