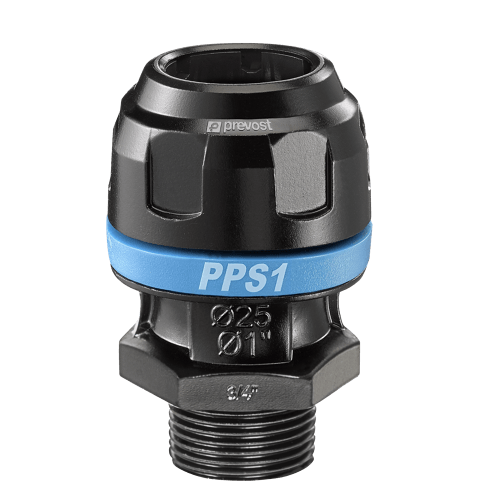

Prevost Aluminum Tapered Male Thread Straight Fitting For Pipe - PPS1 MM
Prevost Aluminum Tapered Male Thread Straight Fitting For Pipe - PPS1 MM
SKU:PPS1 MM16252
Regular price
$8.14 USD
Regular price
Sale price
$8.14 USD
Unit price
per
View full details
Product Information
Introducing the Prevost Aluminum Tapered Male Thread Straight Fitting for Pipe - PPS1 MM, designed for air piping systems. Made of durable aluminum, this fitting ensures a secure and leak-proof connection between pipes. Increase efficiency and reduce costs with this high-quality fitting.
Technology: PPS Grip Concept
Operating pressure: 0 to 232 psi
Vacuum capability: -29 inHg (vacuum 98%)
Temperature: -4°F to +176°F
Construction: Pipe and fittings: aluminum
Highlight: Scalable system
Meets standards: ASME B31.3 REACH
Dimensions
Reference | For pipe OD (in) | NPT male thread | A inch | B inch | C inch |
---|---|---|---|---|---|
PPS1 MM16252 | 1/2″ | 3/8” MNPT | 1.260 | 2.047 | 1.024 |
PPS1 MM16253 | 1/2″ | 1/2” MNPT | 1.260 | 2.283 | 1.024 |
PPS1 MM20253 | 3/4″ | 1/2” MNPT | 1.496 | 2.559 | 1.260 |
PPS1 MM20254 | 3/4″ | 3/4” MNPT | 1.496 | 2.638 | 1.260 |
PPS1 MM25253 | 1″ | 1/2” MNPT | 1.811 | 2.874 | 1.496 |
PPS1 MM25254 | 1″ | 3/4” MNPT | 1.811 | 2.913 | 1.496 |
PPS1 MM25255 | 1″ | 1″ MNPT | 1.811 | 3.071 | 1.496 |
PPS1 MM32255 | 1 1/4″ | 1″ MNPT | 2.244 | 3.465 | 1.811 |
PPS1 MM32256 | 1 1/4″ | 1 1/4″ MNPT | 2.244 | 3.504 | 1.811 |
PPS1 MM40256 | 1 1/2″ | 1 1/4″ MNPT | 2.677 | 4.173 | 2.244 |
PPS1 MM40257 | 1 1/2″ | 1 1/2″ MNPT | 2.677 | 4.173 | 2.244 |
PPS1 MM50257 | 2″ | 1 1/2″ MNPT | 3.307 | 4.724 | 2.835 |
PPS1 MM50258 | 2″ | 2″ MNPT | 3.307 | 4.882 | 2.835 |
PPS1 MM63258 | 2 1/2″ | 2″ MNPT | 3.937 | 5.748 | 3.543 |
PPS1 MM63259 | 2 1/2″ | 2 1/2″ MNPT | 3.937 | 5.984 | 3.543 |
PPS1 MM80259 | 3″ | 2 1/2″ MNPT | 4.764 | 6.811 | 4.331 |
PPS1 MM802510 | 3″ | 3″ MNPT | 4.764 | 6.890 | 4.331 |
