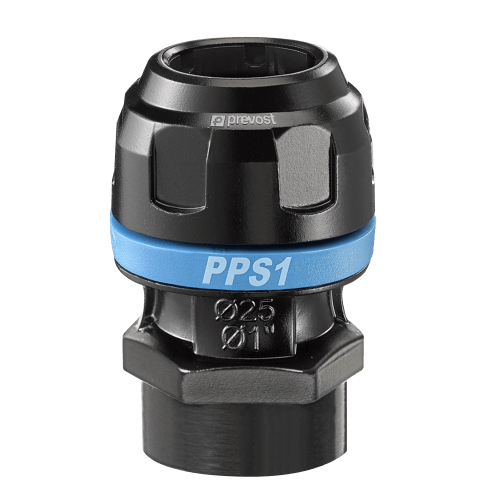

Prevost Aluminum Female Thread Straight Fitting For Pipe - PPS1 MF
Prevost Aluminum Female Thread Straight Fitting For Pipe - PPS1 MF
SKU:PPS1 MF16202
Regular price
$8.35 USD
Regular price
Sale price
$8.35 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Information
Elevate your Prevost Air piping system with our Aluminum Female Thread Straight Fitting. Designed specifically for a perfect fit and easy installation, this sturdy fitting ensures maximum efficiency and reliable performance. Upgrade to the PPS1 MF for long-lasting, leak-free connections.
Technology: PPS Grip Concept
Operating pressure: 0 to 232 psi
Vacuum capability: -29 inHg (vacuum 98%)
Temperature: -4°F to +176°F
Construction Pipe and fittings: aluminum
Highlight: Scalable system
Meets standards: ASME B31.3 REACH
Dimensions
| Reference | For pipe OD (in) | NPT female thread | A inch | B inch | C inch |
|---|---|---|---|---|---|
| PPS1 MF16202 | 1/2″ | 3/8″ FNPT | 1.260 | 2.087 | 1.024 |
| PPS1 MF16203 | 1/2″ | 1/2″ FNPT | 1.260 | 2.087 | 1.024 |
| PPS1 MF20203 | 3/4″ | 1/2″ FNPT | 1.496 | 2.480 | 1.260 |
| PPS1 MF20204 | 3/4″ | 3/4″ FNPT | 1.496 | 2.480 | 1.260 |
| PPS1 MF25203 | 1″ | 1/2″ FNPT | 1.811 | 2.835 | 1.496 |
| PPS1 MF25204 | 1″ | 3/4″ FNPT | 1.811 | 2.835 | 1.496 |
| PPS1 MF25205 | 1″ | 1″ FNPT | 1.811 | 2.835 | 1.496 |
| PPS1 MF32205 | 1 1/4″ | 1″ FNPT | 2.244 | 3.268 | 1.811 |
| PPS1 MF32206 | 1 1/4″ | 1 1/4″ FNPT | 2.244 | 3.268 | 1.811 |
| PPS1 MF40206 | 1 1/2″ | 1 1/4″ FNPT | 2.677 | 3.858 | 2.244 |
| PPS1 MF40207 | 1 1/2″ | 1 1/2″ FNPT | 2.677 | 4.055 | 2.244 |
| PPS1 MF50207 | 2″ | 1 1/2″ FNPT | 3.307 | 4.331 | 2.835 |
| PPS1 MF50208 | 2″ | 2″ FNPT | 3.307 | 4.528 | 2.835 |
| PPS1 MF63208 | 2 1/2″ | 2″ FNPT | 3.937 | 5.394 | 3.543 |
| PPS1 MF63209 | 2 1/2″ | 2 1/2″ FNPT | 3.937 | 5.591 | 3.543 |
| PPS1 MF80209 | 3″ | 2 1/2″ FNPT | 4.764 | 6.457 | 4.331 |
| PPS1 MF802010 | 3″ | 3″ FNPT | 4.764 | 6.457 | 4.331 |
