Prevost 45° Male Elbow - Fractional Inch & Metric Tube - RPQ MG (10pk)
Prevost 45° Male Elbow - Fractional Inch & Metric Tube - RPQ MG (10pk)
SKU:RPQ MG1826
Regular price
$22.60 USD
Regular price
Sale price
$22.60 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Information

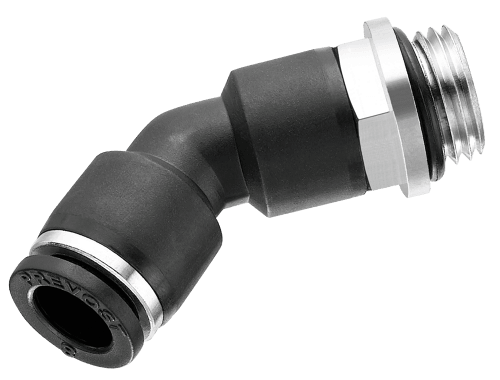

The Prevost 45° Male Elbow allows for easy and secure air piping with its push to connect system. This pack of 10 is perfect for fractional inch tubes and metric connections. Prevost air fittings are perfect for achieving optimal performance and reliability for your air system.
UNF thread: 10-32 UNF
Operating pressure: 0 to 145 psi
Temperature: +32°F to +140°F
Construction - Polymer and nickel-plated brass
Sold as a 10pk
Description - Fractional Inch
| Reference | UNF thread | For tube OD (in) |
|---|---|---|
| RPQ MG1826 | 10-32 UNF | 1/8 |
| RPQ MG5326 | 10-32 UNF | 5/32 |
| RPQ MG3126 | 10-32 UNF | 3/16 |
| RPQ MG4126 | 10-32 UNF | 1/4 |
Description - Metric
| Reference | Metric male threading | For tube OD (mm) |
|---|---|---|
| RPQ MG04M5 | M5 | 4 |
| RPQ MG06M5 | M5 | 6 |
